12V Human Infrared Proximity Sensor Delay Switch Module Kit DIY LIS-2
£6.50
12V Human Infrared Proximity Sensor Delay Switch Module Kit DIY LIS-2

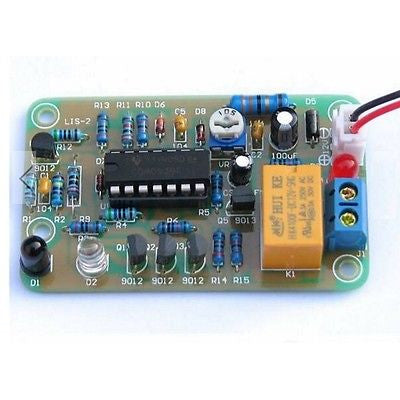

LIS-2 infrared sensor switch detects whether the infrared signal is reflected and emitted to determine whether there is an object in front, so as to control the switching operation of the relay, the reference value sensing distance: 12cm (actual distance on the reflector material) used in the faucet , automatic hand dryers and other equipment on.
Kit Model: LIS-2
Operating voltage: 12V
Quiescent Current: 28mA
Pick-up current: 50mA

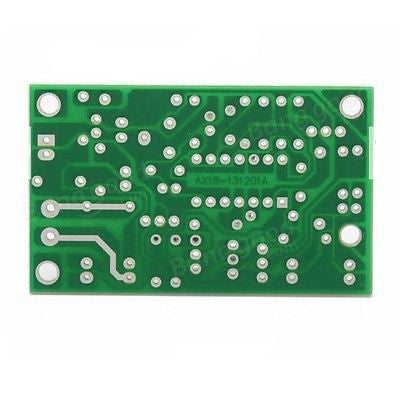

PCB Size: 63 * 39mm
Relay contact capacity: 3A/250V
Delay time: 0 ~ 40S adjustable (Because there is a certain element of error, so the actual delay will be slightly different)
1.2MM thick PCB + new original high-quality devices, allowing the production of significantly improved the success rate!

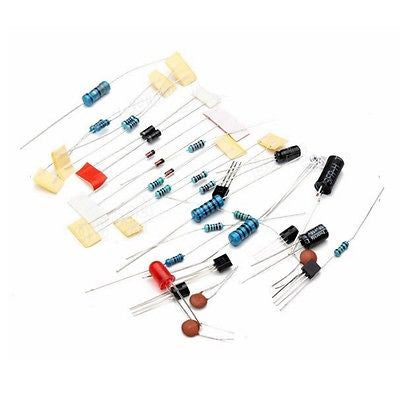

Kit contents:
1 x Infrared KIT
Raspberry Pi is a Trademark of the Raspberry Pi Foundation
Product ID: EP00279
