±12V Power Supply Module 2.8V ~ 5.5V Input Output 5V DC-DC Converter Board
£2.50
±12V Power Supply module 2.8V ~ 5.5V input output 5V DC-DC converter board CG
This module is definitely using imported chip, performance is very good, as long as you have a 3V ~ 5V battery (lithium batteries, nickel hydrogen batteries, etc.) can be easily obtained ± 12V voltage.
Ultra-small size, easy to install.
Input voltage range: 2.8V ~ 5.5V

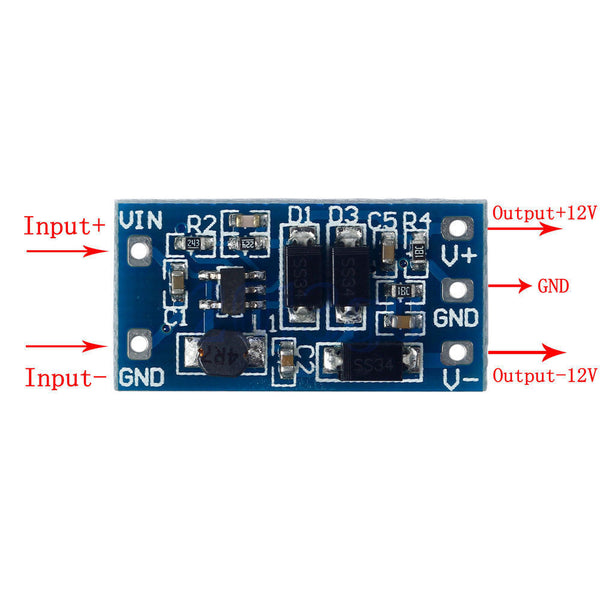

Output voltage: ± 12V (V +: +12V, V-: -12V)
Output Current: + 12V stable output current capability of 50ma, -12V stable output current capability 30ma, almost meet all ADC, DAC and amplifier applications.
Size: 0.94" * 0.47" ( 2.4 * 1.2cm )
Weight: 2g / pc
Color: As the picture show
Note:
Due to a share of the diode voltage, + 12V the actual output higher than the theoretical 0.4-0.6V.
This module is a small current, do not take high-power load.
Application：
This module can be used as ADC, DAC or amplifier, dual power supply.
Package Includes:
1 x Power Supply Module
Raspberry Pi is a Trademark of the Raspberry Pi Foundation
Product ID: EP00340
