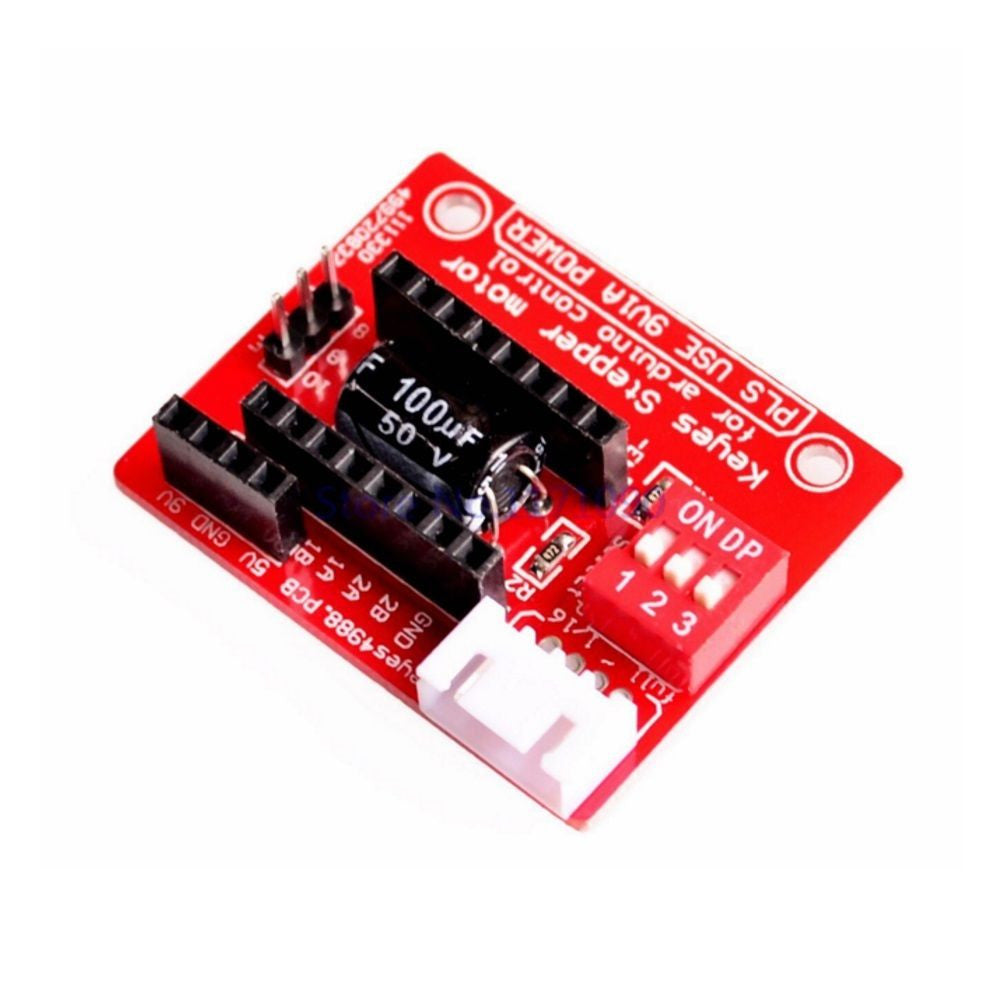

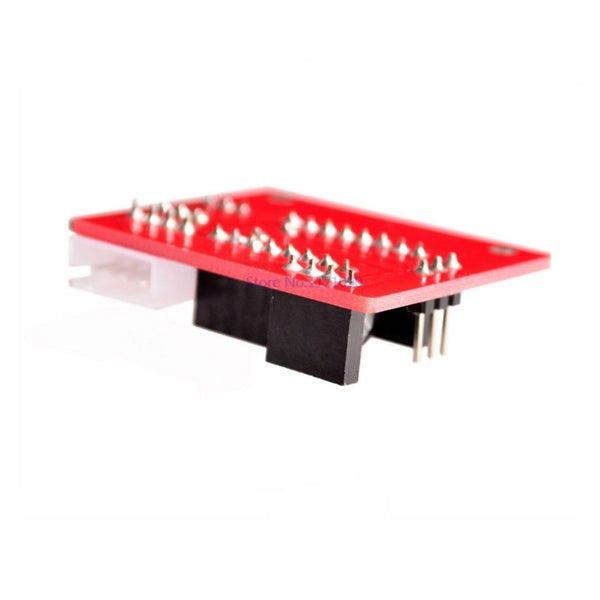

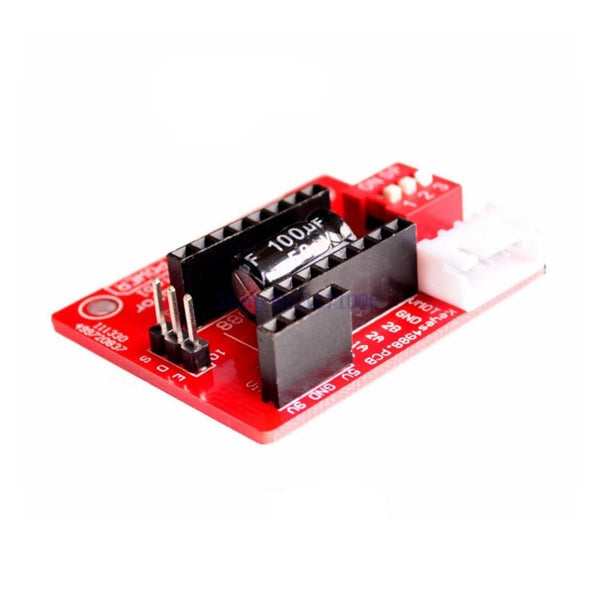

3D Printer A4988 DRV8825 Stepper Motor Control Extension Board Ramps 1.4

£3.75

3D Printer A4988 DRV8825 Stepper Motor Control Extension Board Ramps 1.4

1. If jumper is hit the position of ON DP, that means 16 segment (4988) or 32 segment (8825)Jm connected motor

2. Jv connect 5v and 12v-24v power supply

3. Jc E, S, D, G, respectively corresponding to the connection of the Enable/Step/Dir/Gnd drive signal output

Notice:

Pay attention to when installation direction, otherwise it may burn drive even the main board

Package Included:

1 x A4988/DRV8825 3D Printer Stepper Motor Driver Control Extension Shield Boards

Product ID: EP00300
