One 1 CH Channel 5V Relay Module with IR Infrared Remote Control Raspberry Pi
£5.85
One 1 CH Channel 5V Relay Module with IR Infrared Remote Control Raspberry Pi
Specifications:

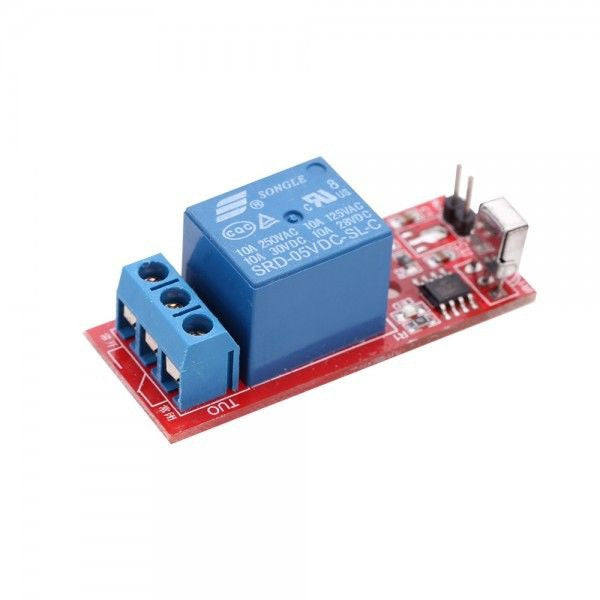

Relay with remote control:
Operating voltage: DC 5V
Quiescent current: ≤ 1 mA
The current needed to maintain contact closure: ≤ 80 mA
The remote control responds at a distance of max 8 meters
Samozamykací function
Dimensions: 50 x 20 x 20 (mm)

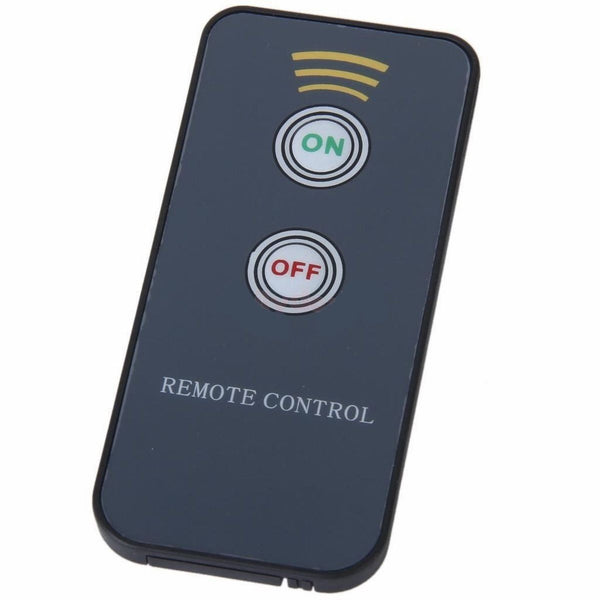

Remote control:
Used chip UPD6122, the encoding format of the NEC
User code: 0x00FF
Core values: the "ON" Button: 40; Button "OFF": 19
Power supply: 1 x battery type CR2025
Dimensions: 86 x 40 x 6 (mm)

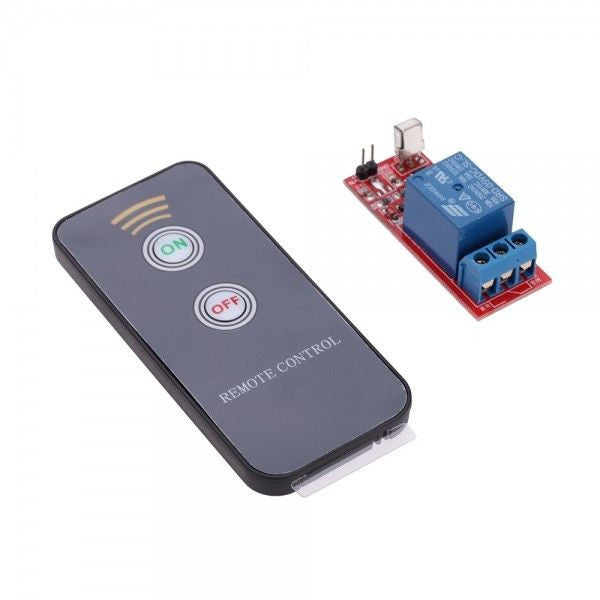

This is a set of receiver and remote control. When you press the ON button, the relay closes, the indicator light is on; when pressing the OFF button, the relay turns off, the indicator light does not illuminate.
Note:
The receiver can only be used with the supplied remote control can work with other remote controls.
The permissible load of the relay is 250VAC-10A, 125VAC-10A, 30VDC-10A, 28VDC-10A.
Package contents:
1 x receiver
1 x remote control (battery type 2025 not included)
UK Seller, quick dispatch. 1ST CLASS POST.
Please see my other listings for Raspberry Pi and Arduino related products.
Raspberry Pi is a Trademark of the Raspberry Pi Foundation
Product ID: EP092
