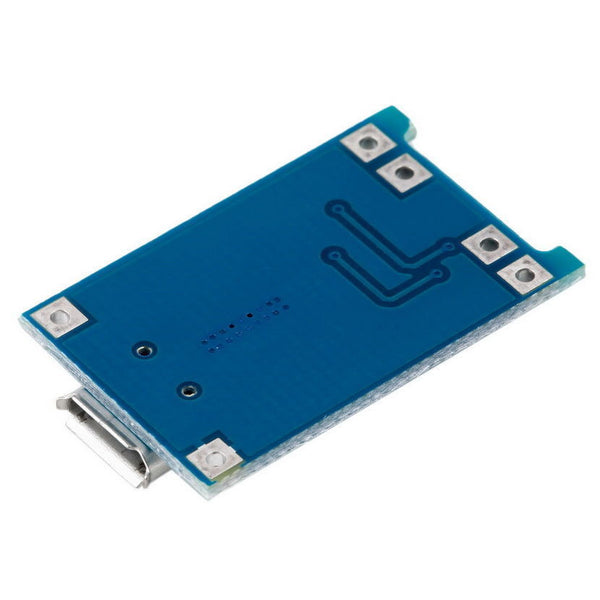

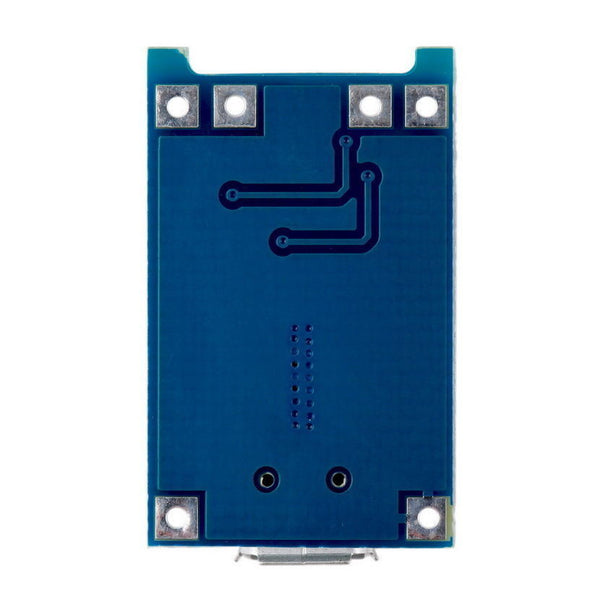

2 x TP4056 5V Micro USB 1A 18650 Lithium Battery Charger Module Board Pi

2 x 5V Micro USB 1A 18650 Lithium Battery Charging Board Charger Module
Charge module- Linear charging.
Current- 1A adjustable.
Charge precision- 1.5%.
Input voltage- 4.5V-5.5V.
Full charge voltage- 4.2V.
Led indicator- red is charging Green is full charged.
Input interface- micro USB.
Work temperature- -10℃ to +85℃.
Inversed polarity- NO.
Size- small to 25X19X10mm.
Note: The first time you access the battery, it may no voltage between the output OUT + and OUT-, then access 5V voltage charge your energy can activate the protection circuit, and the battery from the B + B-, then draw a line on the short open also need recharged to activate the protection circuit. Note that the charger must be able to output 1A or more to do when using a mobile phone charger input, or may not charge

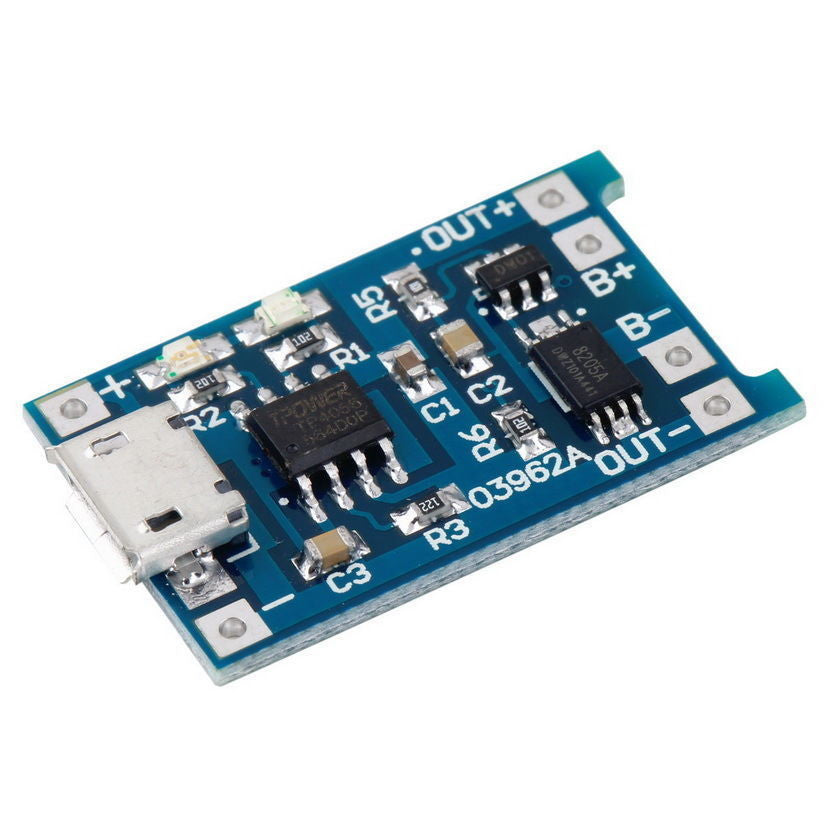

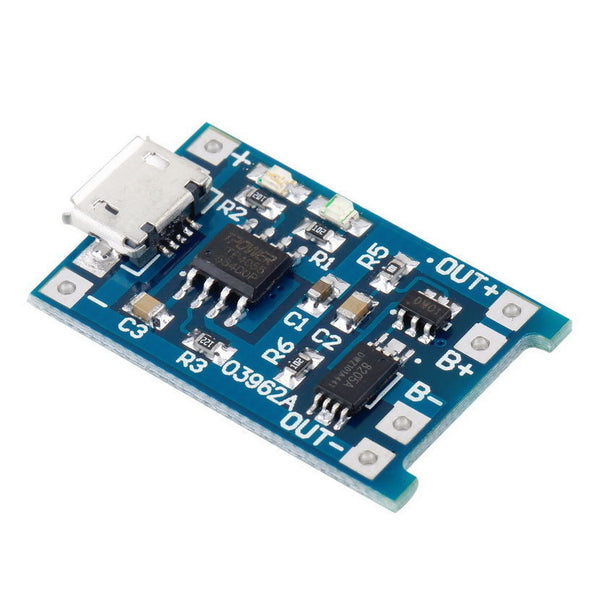

+ MICRO USB female and next - pads for the power input, access 5V. B + positive then the lithium battery, B- then negative lithium batteries. OUT + and OUT- connected to the load, such as positive and negative electrodes connected mobile booster plate or other load.
Connect the battery to the B + B-, inserted into the USB female mobile phone charger, the red light is being charged, the green light to full.
Package content:
2 x  5V Micro USB 1A 18650 Lithium Battery Charging Board
Raspberry Pi is a Trademark of the Raspberry Pi Foundation
Product ID: EP00254
