5V Mini USB 1A Lithium Battery Charging Board TP4056 Charger Module
£2.90
5V Mini USB 1A Lithium Battery Charging Board TP4056 Charger Module
Feature:
Charge module: Linear charging.
charging current: 1A adjustable.
Charge precision: 1.5%.
Input voltage: 4.5V - 5.5V.
Full charged voltage: 4.2V.

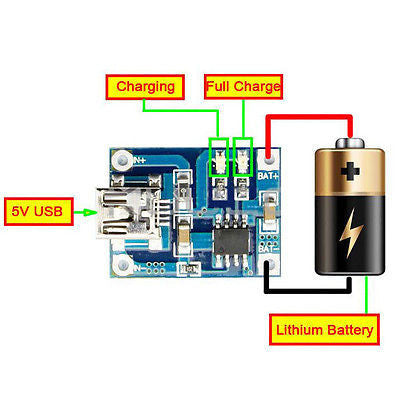

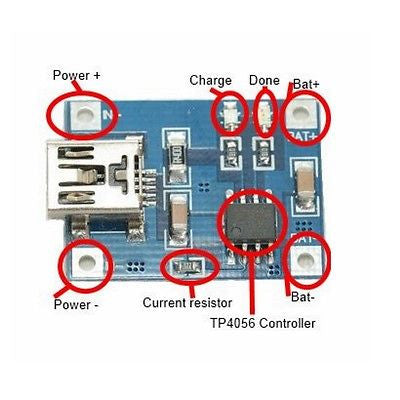

Led indicator:red is charging blue is full charged.
Input interface:mini USB.
Work temperature:- 10 Degrees Celsius to +85 Degrees Celsius.
Inversed polarity:NO
Size- small to 25 X 19 X 10mm.
Weight: 1.8g
Note:
1. Ampere meter can only be connected to 5v input end of the module.
2. It is better that the charging current is 37% of the battery capacity. If you charge to the battery of 1000mAH, current of 400 is enough.
3. The connection wire should not be too thick.
4. Make sure the connect point is good.
5. If the input voltage is too high, like 5.2v, the current will be less than 1000mA, it is normal. It is protection function, auto-substract the charging current to avoid burn damage to chip.
6. NO Reveral polarity.
Package content:
1 x TP4056 5V Mini USB 1A Lithium Battery Charging Board Charger Module
Raspberry Pi is a Trademark of the Raspberry Pi Foundation
Product ID: EP00116
