84x48 1.6" LCD Screen Module White back light Nokia 5110 Arduino Raspberry Pi
£4.75

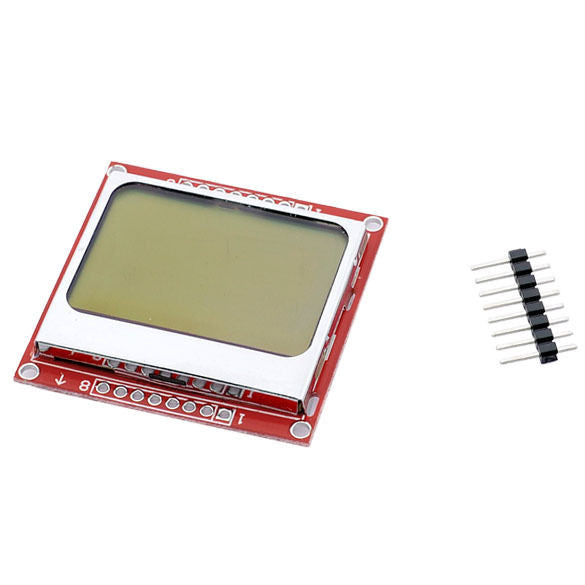

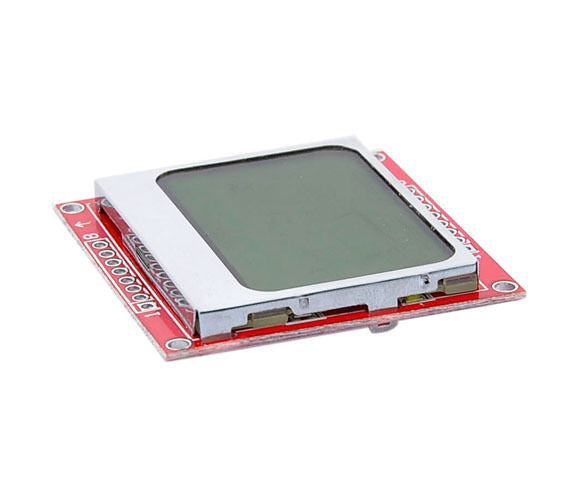

84x48 LCD screen for Raspberry Pi Arduino Nokia 5110
This is a LCD screen originally made for Nokia 5110. The screen is perfect to display output readings from Rasoberry Pi or Arduino Computer.
The Nokia 5110 is a basic graphic LCD screen for lots of applications. This one is mounted on an easy to solder PCB.
It uses the PCD8544 controller, which is the same used in the Nokia 3310 LCD. The PCD8544 is a low power CMOS LCD controller/driver, designed to drive a graphic display of 48 rows and 84 columns. All necessary functions for the display are provided in a single chip, including on-chip generation of LCD supply and bias voltages, resulting in a minimum of external components and low power consumption. The PCD8544 interfaces to microcontrollers through a serial bus interface.
The link below shows you a tutorial on how to connect your LCD Screen to Raspberry Pi.
http://www.bartbania.com/index.php/raspberry-pi-lcd-monitor-raspberry-pi/
Tutorial on getting a Nokia 5110 screen to work with Raspberry Pi
http://www.averagemanvsraspberrypi.com/2015/01/make-your-own-nokia-5110-raspberry-pi.html
Features:
100% Brand New.
4-board LED, backlight, light uniformity
PCB Size: 45 (mm) x 45 (mm)

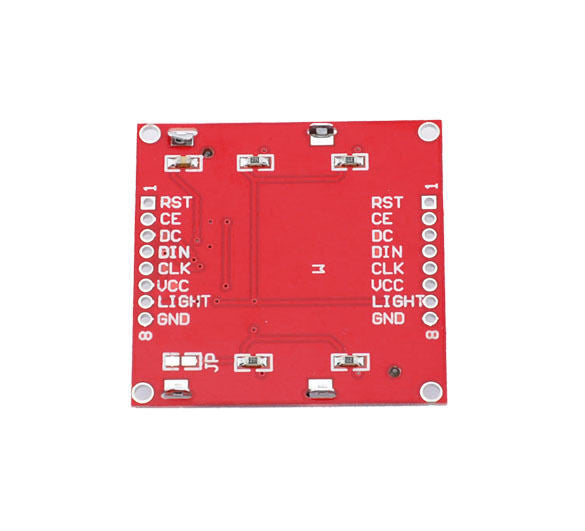

The corners were positioning holes, along with two rows of the upper and lower connection port, ranked as follows:
VCC - power input ( 3.3v )
GND - Ground
SCE - Chip Select
RST - Reset
D \ C - data / instruction selection
DN - Serial Data Line
CLK - Serial Clock Line
LED - backlit console
Package Content:
1 x Nokia 5110 LCD Module
Raspberry Pi is a Trademark of the Raspberry Pi Foundation.
Product ID: EP0075
