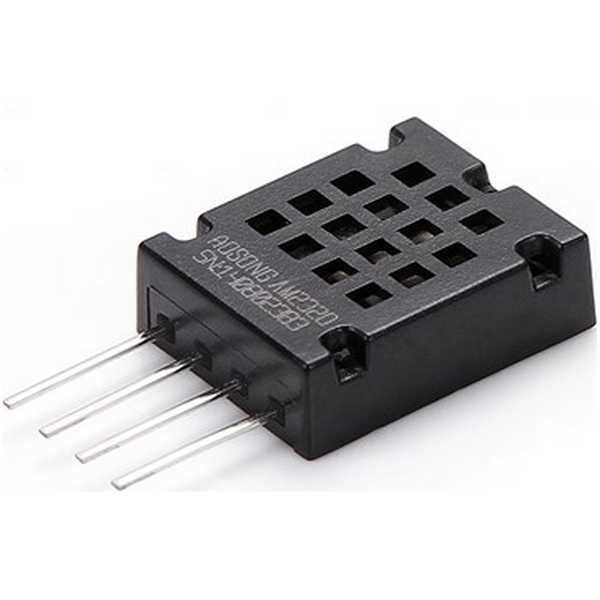

AM2320 Digital Temperature and Humidity Sensor Module Arduino Raspberry Pi NEW

AM2320 Digital Temperature and Humidity Sensor Module Arduino Raspberry Pi NEW
Product Overview
AM2320 digital temperature and humidity sensor is a calibrated digital signal output already contains temperature and humidity sensor complex. Temperature and humidity using a dedicated capture technology to ensure that products with high reliability and excellent long-term stability. Sensor includes a capacitive sense element and a wet-precision temperature measurement devices integrated and connected with a high-performance microprocessors. The product has excellent quality, fast response, anti-interference ability, high cost and other advantages.
AM2320 single communication bus standard I2C two means of communication. Standard single-bus interface, the system integration becomes simpler and faster. Ultra-small size, low power consumption, signal transmission distance up to 20 meters or more, making it the best choice for all kinds of applications and even the most demanding applications. I2C communication using standard communication sequence, the user can communicate directly linked to the I2C bus, no additional wiring, simple to use. Two means of communication are used as humidity, temperature and check CRC and other digital information directly by temperature compensated output, users do not need to calculate the secondary digital output, and no need to compensate for temperature and humidity, you can get an accurate temperature and humidity information. Two means of communication are free to switch, the user can freely choose, easy to use, it should be broad areas. Products for the 4-wire, easy connection, special packages can be provided according to user needs.
Product characteristics
Ultra-small size
Ultra-low voltage operation
Excellent long-term stability
Standard I2C and single bus output
HVAC, dehumidifiers, testing and inspection equipment, consumer goods, automotive, automation, data loggers, weather stations, home appliances, humidity control, medical, and other relevant humidity measurement and control.
Product highlights
 Completely interchangeable, low cost, long-term stability, relative humidity and temperature measurement, long distance signal transmission, the digital signal output, precise calibration, low power consumption, standard single-bus digital interface standard I2C bus digital interface, communication can be freedom of choice.
Technical parameters
Measuring range: Temperature: -40 ~ + 80  Humidity: 0 ~ 99.9% RH
Accuracy (25  environment):
Temperature: ± 0.5  Humidity: ± 3% RH (10 ... 90% RH)
Resolution: Temperature: 0.1  Humidity: 0.1% RH
Attenuation values: Temperature: <0.1  / year Humidity: <1% RH / year
Sensor Type:
Temperature: resistive humidity sensors: capacitive sensors
Response time: Temperature: 5s Humidity: 5s 1 / e (63%)
Operating temperature range: -40 ~ + 80 ° C
Power: DC: 3.1 ~ 5.5V
Output signal: single bus / IIC signal
Housing material: PC plastic
Weight: 0.5g
Data Sheet:
Packing Content:
1 x AM2320 Digital Temperature and Humidity Sensor
Raspberry Pi is a Trademark of the Raspberry Pi Foundation
Product ID: EP00219
