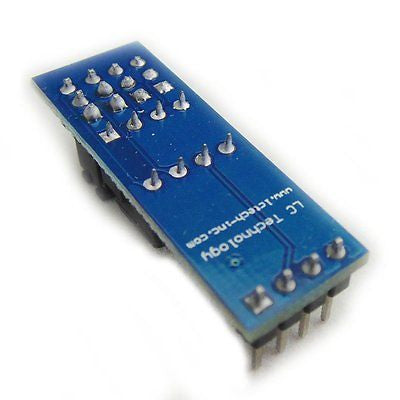

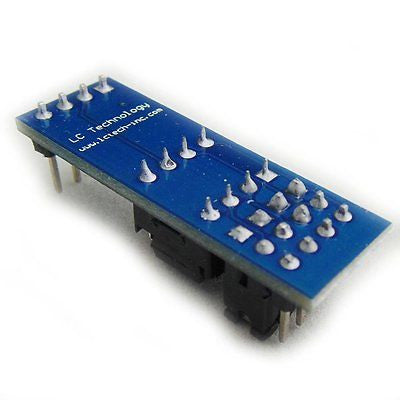

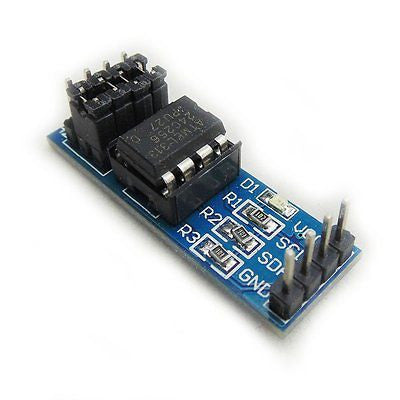

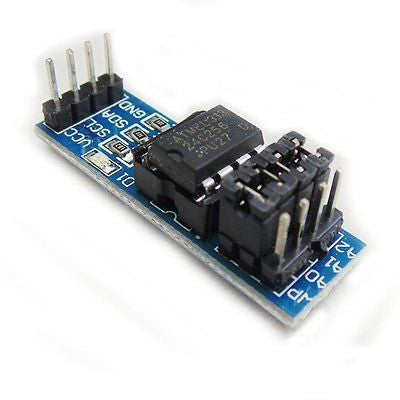

AT24C256 I2C Interface 256k Bits EEPROM Memory Module

£2.90
T24C256 I2C Interface 256k Bits EEPROM Memory Module

If you need to do some data storage in Arduino, then using the EEPROM is probably the most simple practices. In actual,Arduino used ATmega chip itself has certain EEPROM memory, but only limited number. We design the external EEPROM memory module which use I2C bus line to connect with Arduino, and with pluggable chip, insert in this series, so it will easy to expand capacity, basically just need to insert a bigger capacity of EEPROM chip. The storage module is based on EEPROM chips of AT24C series, 256K bit capacity, that's 32k bytes. The EEPROM module communicate with Arduino through the I2C interface.It will be better to use with Arduino-Sensor-Shield-V4.0 and the Arduino-I2C-COM-Cable.

 Specifications:
Operating Temperature: -55°C to 125°C Storage Temperature: -65°C to 150°C Voltage on Any Pin with respect to ground: -1.0V to 7.0V Maximum Operating Voltage: 6.25V DC Output Current: 5.0mA
8P chip seat, installation of AT24C256 chip;
Pin-powered on-board power indicator;
I2C communications required pull-up resistor;
All pins are leads and marked address input and direct write-protect pin jumper settings;
PCB board Dimensions: 36.5 (mm) x12 (mm)


Package Included:
1 x AT24C256 I2C EEPROM memory module
Product ID: EP00312
