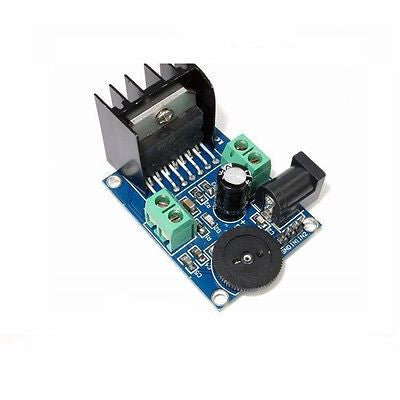

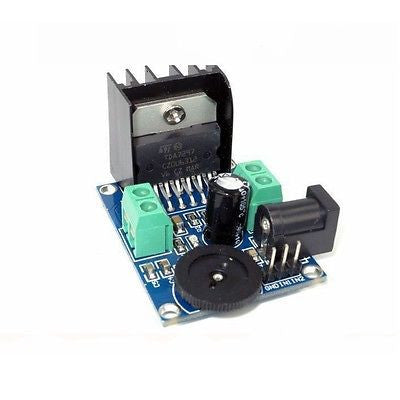

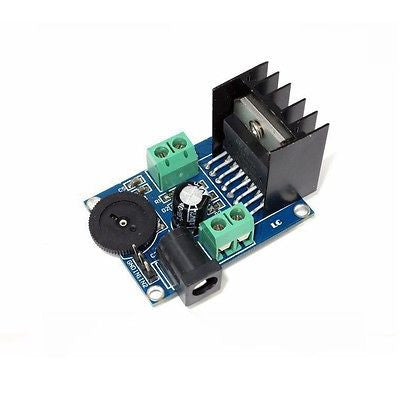

DC 3 to 18V TDA7266 Power Amplifier Module Double Channel 5-15 W

£6.25
DC 3 to 18V TDA7266 Power Amplifier Module Double Channel 5-15 W


Working voltage: 3 to 18 v
The board size: 45 (mm) x33 (mm)
On board TDA7266 audio power amplifier chip, double channel 7W+7W, speaker for European 4-8 5-15W use
Main pin has led chips, convenient external device control, on board 2 road, 5.08 (mm) distance between 2 p terminal, around a track connection output respectively
On board dial potentiometer, can adjust the volume of output size
Support for DC, terminals, pin 3 power supply input mode, the default for the DC,



Package include:
1 x New DC 3 to 18V TDA7266 Power Amplifier Module
Raspberry Pi is a Trademark of the Raspberry Pi Foundation
Product ID: EP00224
