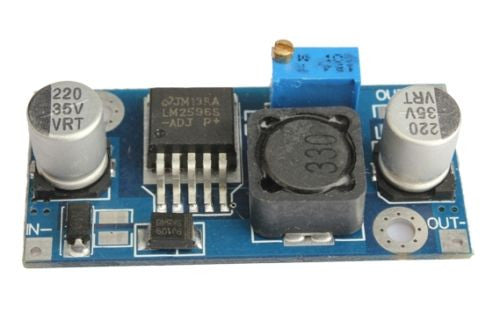

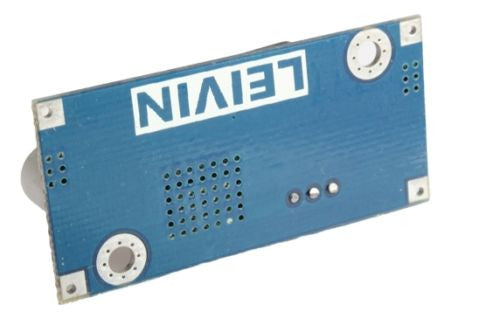

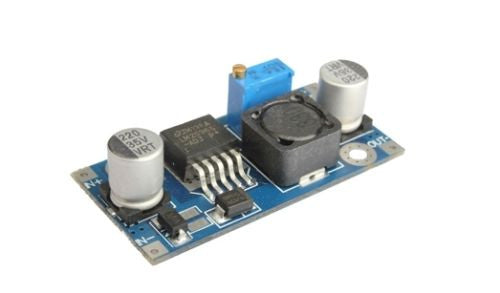

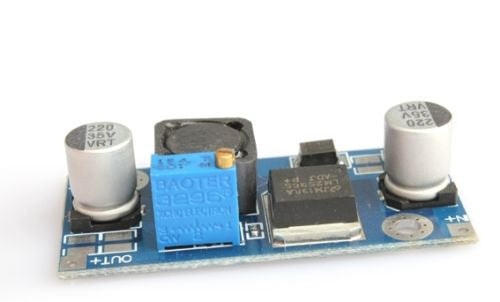

DC-DC Buck Converter Step Down Module LM2596 Power Output 1.23V-30V

£3.30
DC-DC Buck Converter Step Down Module LM2596 Power Output 1.23V-30V TU


Conversion efficiency: Up to 92% (the higher the output voltage, the higher the efficiency)
Potentiometer adjustment direction: Clockwise (increase), Anti-clockwise (decrease)
Switching frequency: 150KHz
Rectifier: Non-synchronous rectification
Module properties: Non-isolated step-down module
Short circuit protection: Current limiting, self-recovery
Operating temperature: Industrial grade (-40 to +85 degrees Celsius) (output power 10W or less)
Load regulation: +/- 0.5%
Voltage regulation: +/- 2.5%
Dynamic response speed: 5% 200uS
Connection mode: Welded, plus pin can be directly soldered PCB

Specifications:
Input voltage: 3-40V
Output voltage: 1.5-35V (adjustable)
Output current: Rated current is 2A, maximum 3A (if the output power more than 10W, the heat sink is needed.)
Item size: 48 x 22 x 12mm / 1.9 x 0.9 x 0.5in
Item weight: 12g / 0.4oz

A good video for Stepping down power supply for Raspberry Pi
https://www.youtube.com/watch?v=LvRZs789jMk


Package Content:
1 x LM2596S DC-DC Step-down Module
Raspberry Pi is a Trademark of the Raspberry Pi Foundation

Product ID: EP00201
