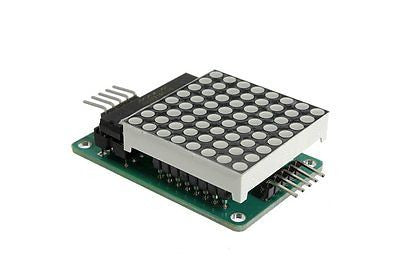

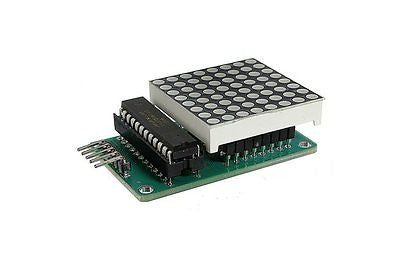

MAX7219 8x8 Red Dot Matrix Module Display Module Kit for Raspberry Pi Arduino

£2.75

MAX7219 8x8 Red Dot Matrix Module Display Module Kit for Raspberry Pi Arduino


Features:
Model:MAX7219
Can drive an 8 x 8 common cathode lattice
Module with input and output interfaces supports multiple modules cascade
The left of the module has an input port and the right an output port
The control of a single module‚ simply input port to the CPU
Multiple modules cascade input termination CPU‚ 2 output termination module‚ a module of the input of the input terminal‚ the output terminal of the first two modules of the first three modules etc.

Specifications:
Operating voltage: 5V
With four screws hole(diameter: 3 mm)
For example 51 MCU:
VCC - 5V
GND - GND
DIN - P22
CS - P21
CLK - P20


Package Includes:
1 x MAX7219 LED module KIT

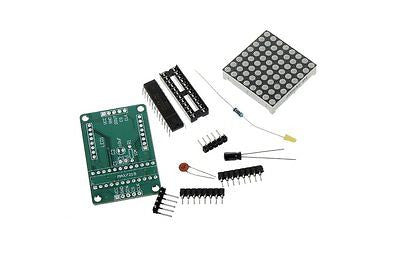

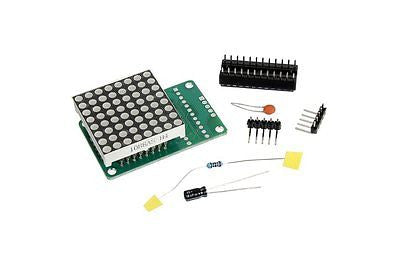

Content:

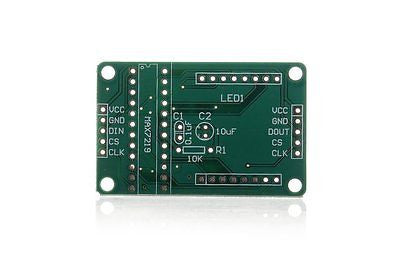

(1X PCB board
1X 24P IC socket
1X DIP MAX7219 chip
1X 10uF electrolytic capacitor
1X 0.1uF a ceramic capacitor
1X 10K resistor
1X 3mm 8 x 8 common cathode a red dot)


Raspberry Pi is a Trademark of the Raspberry Pi Foundation.


Product ID: EP00168
