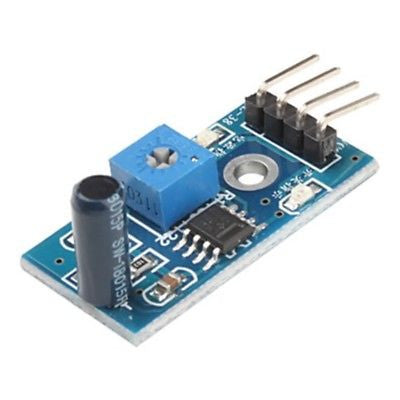

Vibration Switch Sensor Module 3V-5V for Arduino Raspberry Pi New

$5.00
 3V-5VDC Vibration Switch Sensor Module for Arduino Raspberry Pi New

This module usually used for detecting the vibration intensity.
When vibration intensity can not reach the value, DO output is high level. When vibration intensity over than the value, the module DO output is low level.
The module digital output DO can be directly connected with the Raspberry Pi or Arduino, use Raspberry Pi or Arduino to detect high or low level, so that can detect the vibration.

When Vibration sensor module DO output in low level (D0-OUT indicator turn light).
Accuracy adjustable.
Operating voltage 3.3V-5V
Output model: digital switch output (0 and 1)
With a mounting screw hole

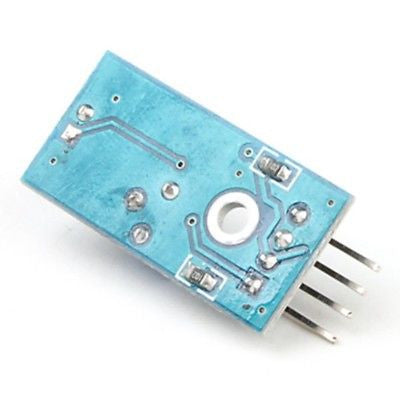

PCB size: 3cm x 1.6cm

Interface Description (3-wire)
1 VCC: 3.3V-5V voltage (can connect directly with 5V microcontroller or 3.3V microcontroller)
2 GND: GND
3 DO: Board digital output interface (0 and 1)
4 AO: Empty

Package include:

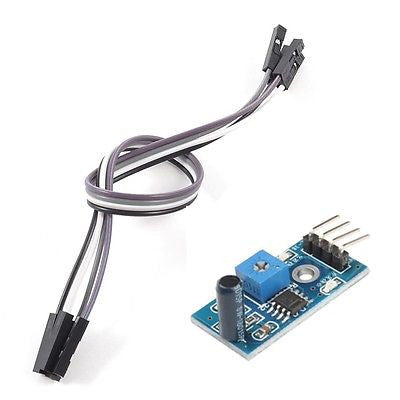

1 x Vibration Sensor Module

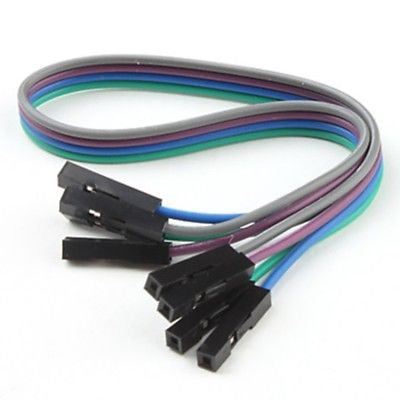

4x Jumper cables

UK Seller, quick dispatch. 1ST CLASS POST.
Please see my other listings for Raspberry Pi and Arduino related products.


Raspberry Pi is a Trademark of the Raspberry Pi Foundation.


Product ID: EP099
