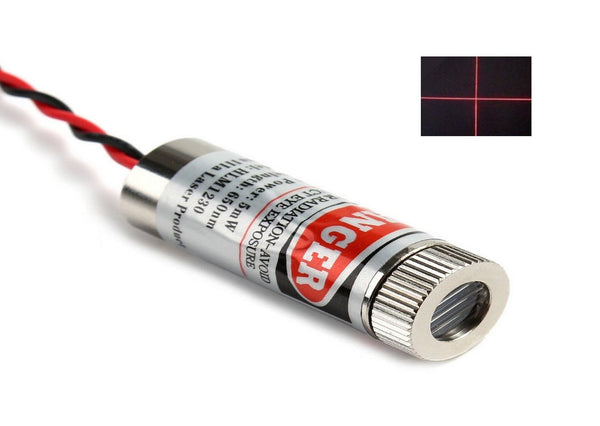

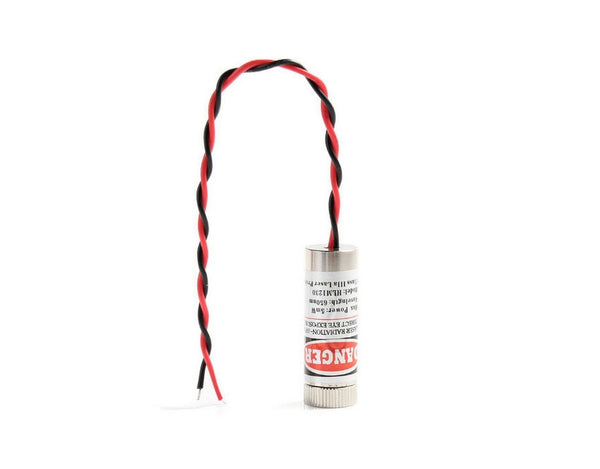

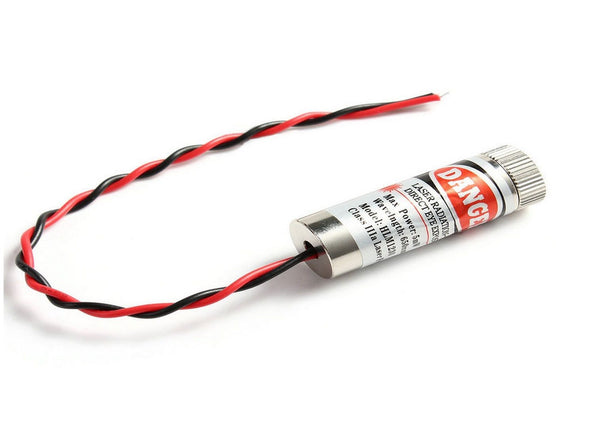

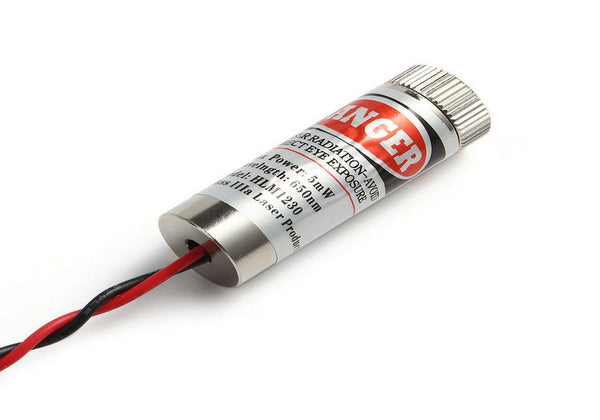

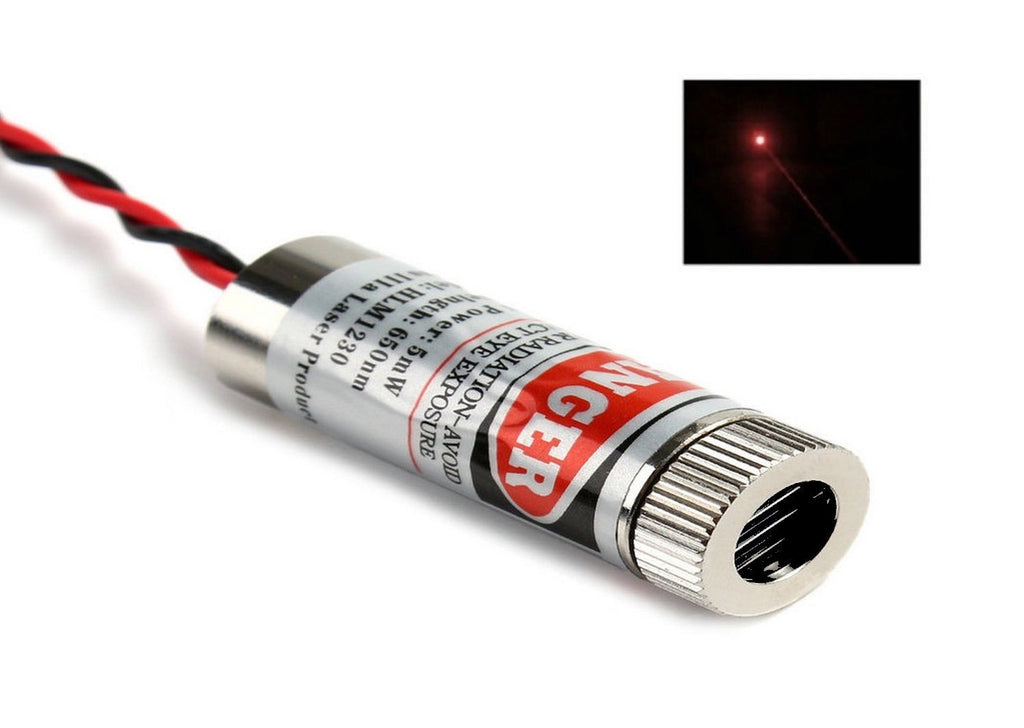

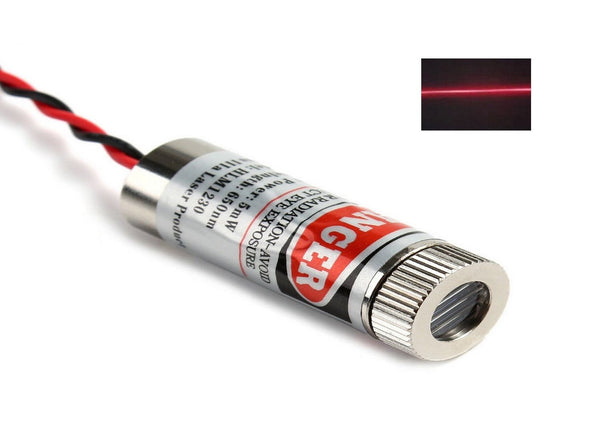

650nm Laser Module 5V Industrial Grade DOT / LINE / CROSS

£3.50
650nm Laser Module 5V Industrial Grade DOT / LINE / CROSS

You have some frickin' sharks at your lair, and you're thinking "it would be really great if I could attach some lasers to them" and then you see these little laser diode modules: what great timing! These encapsulated laser diodes are Class IIIa 5mW, with a 650nm red wavelength. They can be driven from 2.8V to 5.2V so they're great for your embedded electronics project.
Please note: this is not a laser pointer. It's a diode with integrated driver. You still need a 3 to 5VDC power supply. These diodes are 5mW output, and have a safety label marked on them.
Weight: 11.85g
Diameter: 10.11mm
Length: 32.82mm
Wire length: 100mm
650nm wavelength
2.8 - 5.2V DC voltage input
25mA max current draw
Operating temperature -10°C to 40°C;

Application:
1. sighting device for orientation
2. laser test tools
3. Concentricity positioning
4. Medical equipment positioning
5. Production of signal equipment
6. Use for DIY or robots

Package Content:
1 x 650nm Laser light
Raspberry Pi is a Trademark of the Raspberry Pi Foundation

Product ID: EP00285
